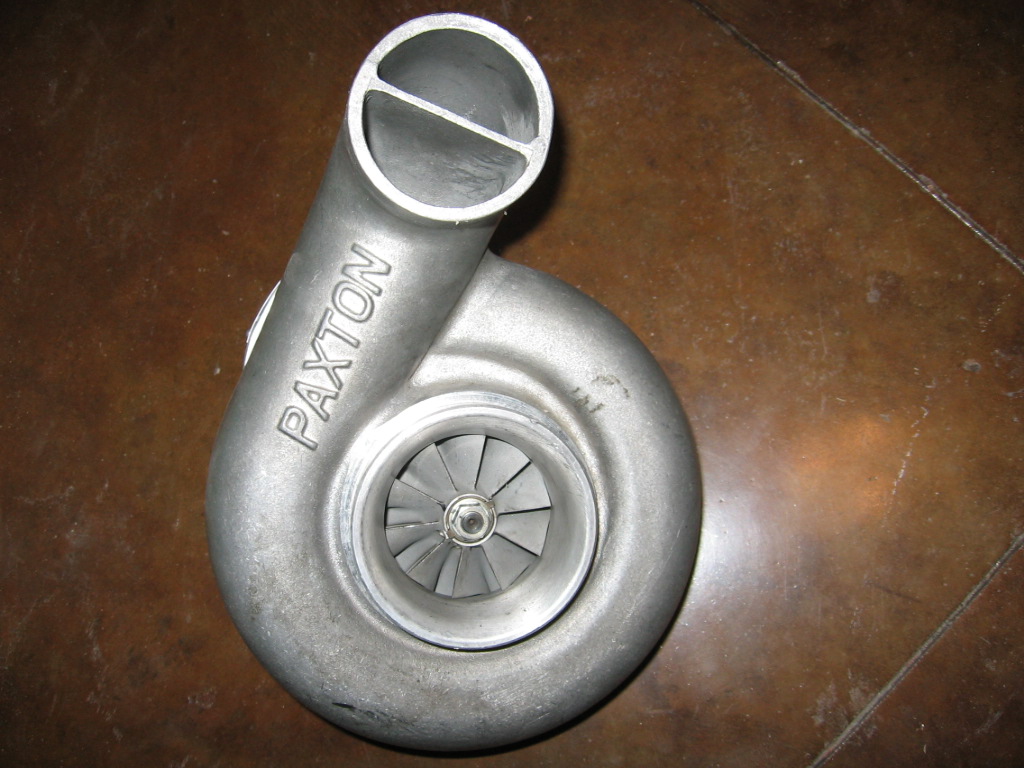

PAXTON NOVI 1000, 1200, 1220, 1500, 2000, 2200, 2500 / SN-series, VR4

Paxton NOVI 1000, 1200, 1500, 2000, 2200, 2500 / SN-93 SN-2000 VR4

Paxton Repair Services

Paxton NOVI 1000/1200/1220/1500/2000/2200/2500 repair service (replace 4 bearings, 2 seals).
$505.00 – Paxton NOVI ABEC 7 (57K rpm) repair service
$645.00 – Paxton NOVI ABEC 7 Ceramic hybrid (62K rpm) repair service
$280.00 – Shaft seal only repair service
$225.00 – machine scroll to larger trim profile (from Novi 1200 to Novi 1500, for example)
(prices include $40 domestic return shipping – add $60 for Express International shipping)

$1095 – NOVI 1200 or 1220 up to NOVI 1500 trim conversion (3.25″ x 5.75″) billet impeller, bearings, and seals.
$1265 – NOVI 1200, 1220, or 1500 to NOVI 2200 trim conversion (3.50″ x 5.75″) billet impeller, bearings, and seals.
$1365 – NOVI 1200, 1220, or 1500 to NOVI 2200X trim conversion (3.75″ x 5.75″) billet impeller, bearings, and seals.
$1315 – NOVI 1000 to NOVI 2000 trim conversion (3.50″ x 6.00″) billet impeller, bearings, and seals.
$1365 – NOVI 2000 to NOVI 2500 trim conversion (3.75″ x 5.75″) billet impeller, bearings, and seals.

Shipping and payment details on Repair Form here:
https://www.superchargerrebuild.com/repair-order-form/

Impellers for Paxton

$455 – High end billet 8/8 impeller for Paxton NOVI 2200X, 2500 – 7075


Choose Profile
Rotation



$435 – High end billet 8/8 impeller for Paxton NOVI 1200 1220/SL, 1500/SL, 2200/SL- 7075


Choose Profile
Rotation




$435 – High end billet 7/7 impeller for Paxton NOVI 1200, 1220/SL, 1500/SL, 2200/SL- 7075


Choose Profile
Rotation




$405.00 – Mid range 16 tall Billet impeller for NOVI 1200, 1220, 1500, 2200, 2500


Profile
Rotation




$495 – 9/9 Billet impeller for NOVI 2000, 2200


Options
Finish Option




$405 – Cast impeller NOVI 2200 and 2000, CW


Cast
Finish Option




$495 – Billet impeller for Paxton VR4, SN-series ball drive


Option
Rotation




$495 – Custom modification to Upgrade SN89, SN92, SN93, SN2000, NOVI GSS Scroll / Volute / Impeller cover.

Shipping and payment details on Repair Form here:
https://www.superchargerrebuild.com/repair-order-form/

Paxton NOVI Repair Kits / Parts

—-


Paxton NOVI 1000/1200/1220/1500/2000/2200/2500 Repair Kits, 2 input shaft and 2 precision thrust output shaft bearings and 2 shaft oil seals. Specify model when ordering. Oring is optional.
Select choice of impeller shaft seal: current OEM style is Mechanical seal (most popular) – spring loaded carbon ring (seals against the back of the thrust washer) OR the aftermarket PTFE/Viton hybrid seal – Viton rubber lined with PTFE to reduce friction and wear (seals around the shaft OD).

$230 – $245 Paxton NOVI repair kit w/ Mechanical seal (Most Popular)


Options
Model




$230 – $245 Paxton NOVI repair kit w/ PTFE hybrid seal










Click Options List
Select Model











oil-slinger
$35 – Oiler Plate for Paxton SL models. (Since these are thicker than stock, you will need to adjust the pre-load on the impeller shaft, usually removing 1 wave spring, works for most.)







$375 – $395 Paxton NOVI ABEC 7 Ceramic hybrid kit (62k)










Click Options List
Select Model











$80 – Output shaft bearing, ABEC 7, Steel ball, H.S.


Select OD size



$150 – Output shaft bearing, ABEC 7, Ceramic ball, hybrid, H.S.


Select OD size




$20 – 80 Input bearings










Low speed Input shaft bearing options








$65 – 95 – Gen 1 & Gen 2 – NOVI input and output seals, plus oring


Click Options List
Oring size




$50 – 80 – Gen 1 & Gen 2 – NOVI Input and Output shaft seals


Click Options List



$35 – Thrust Washer for Impeller Shaft



Select Model




$35.00 – 65.00 – Gen 1 & Gen 2 – NOVI Output shaft seals



Click Options List



$15.00 – Input shaft seal


Select Model



$15.00 – Front cover O-ring


Select Model




$325 – $355 – Output shaft gear (straight or helical)



Model

Rotation




$355 – $395 – Input shaft gear (straight or helical) – 2 piece design, uses removable input shaft



Model

Rotation



v-input-sft.JPG $155.00 – NOVI 1200, 1220, 1500, 2200 Input shaft for 2 piece design



Choose Model




$4 – Output (Impeller) shaft nut


Choose Thread



Brackets for Paxton


$225 – 86-96 Ford F150 / 93-95 Ford F150 Lightning 5.8 / 86-96 Bronco 5.0/5.8


Bracket / Tensioner
Bolt Pattern Options



9704-f150-4-6-novi
$250 – Bracket set (2 pc.) for 97-04 F150 4.6 / 5.4L – NOVI 2000 / 1000 bolt pattern


Moutning Parts



96-98-4v-novi-brkts
$250 – Bracket set (3 pc.) for 96-98 Mustang 4V Cobra 4.6L – NOVI 2000 / 1000 bolt pattern


Mounting Parts



Paxton SN-type parts

$225 – SN-series Output shaft

$155 – Pair of SN races

$120 – Bearings and Shaft Seals

$65 – 5 balls

$35-60 – SN Seals


Model



$120 – SN Pulleys (4″ – 3.25″)

Model

$105 – SN Ball driver

$225 – “Upgraded” or “Modified” SN series Impeller
